Inspection, Packaging And Sterilization Area

The area in CSSD designated for the inspection, assembly, packaging, and sterilization (including dressing production) of contaminated medical equipment, appliances, and items is classified as a clean area.

The chief equipment in the inspection, packaging and sterilization area

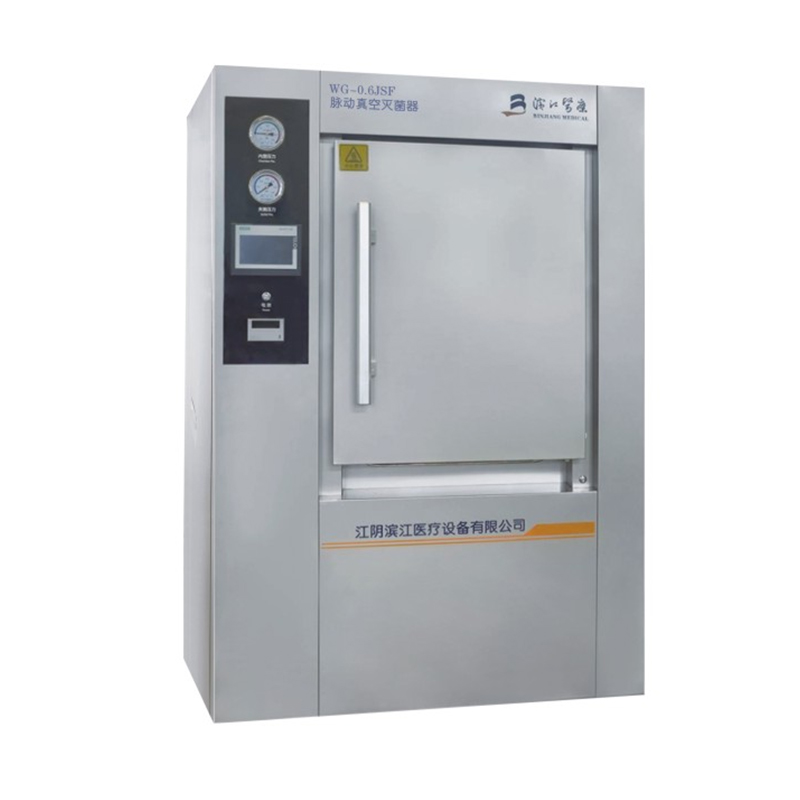

WG Series Mechanical-Door Pulse Vacuum Sterilizing Cabinet

Item	Parameter
Inner chamber design pressure	-0.1~0.3MPa
Jacket design pressure	0.3MPa
Design temperature	150°C
Maximum working temperature	138°C
Maximum working pressure	0.25MPa
Vacuum leakage rate	≤0.13KPa/min
Ultimate vacuum	-96KPa
Open pressure for inner chamber's safety valve	0.28MPa
Open pressure for jacket's safety valve	0.28MPa
Precision of sterilization temperature control	0~2°C
Temperature uniformity	±1°C
Negative pressure pulsation vacuum amplitude and times	amplitude -80~0KPa times 1~99
Times of pulses across pressure	amplitude -80~80KPa times 1
Times of positive pressure pulses	1~3

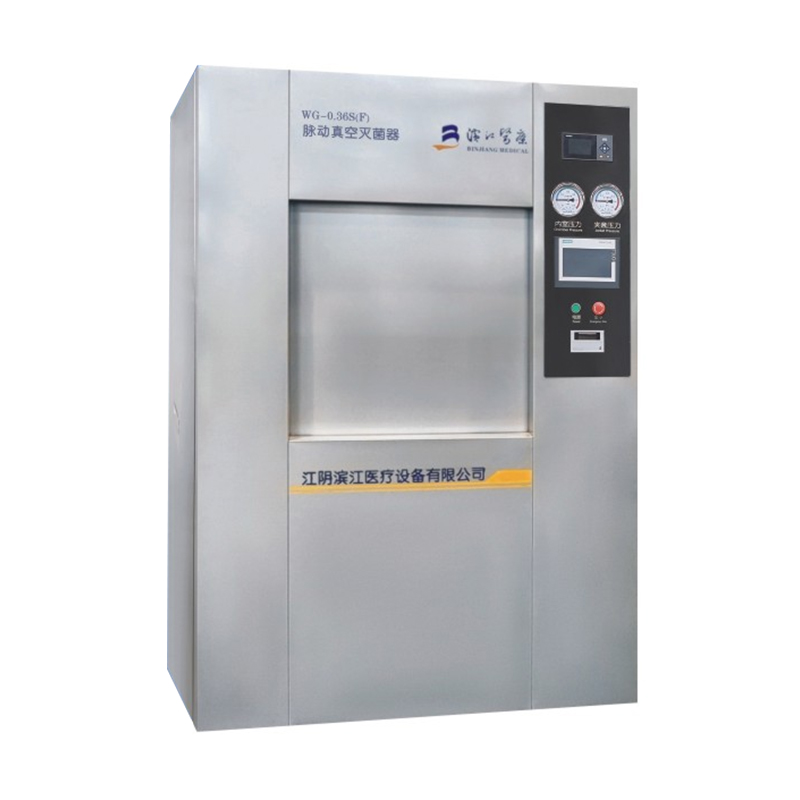

WG Series Lifting-Door Pulse Vacuum Sterilizing Cabinet

WG series pulsating vacuum sterilizer can be widely used in pharmaceutical, bioengineering, medical health, scientific research, and other fields. It is applied to sterilizing articles with high-grade requirements, such as sterile clothes, medical cages, tools, instruments, rubber, liquid, medical dressing, and so on.

Item	Parameter
Inner chamber design pressure	-0.1~0.3MPa
Jacket design pressure	0.3MPa
Design temperature	150°C
Maximum working temperature	138°C
Maximum working pressure	0.25MPa
Vacuum leakage rate	≤0.13KPa/min
Ultimate vacuum	-96KPa
Open pressure for inner chamber's safety valve	0.28MPa
Open pressure for jacket's safety valve	0.28MPa
Precision of sterilization temperature control	0~2°C
Temperature uniformity	±1°C
Negative pressure pulsation vacuum amplitude and times	amplitude -80~0KPa times 1~99
Times of pulses across pressure	amplitude -80~80KPa times 1
Times of positive pressure pulses	1~3

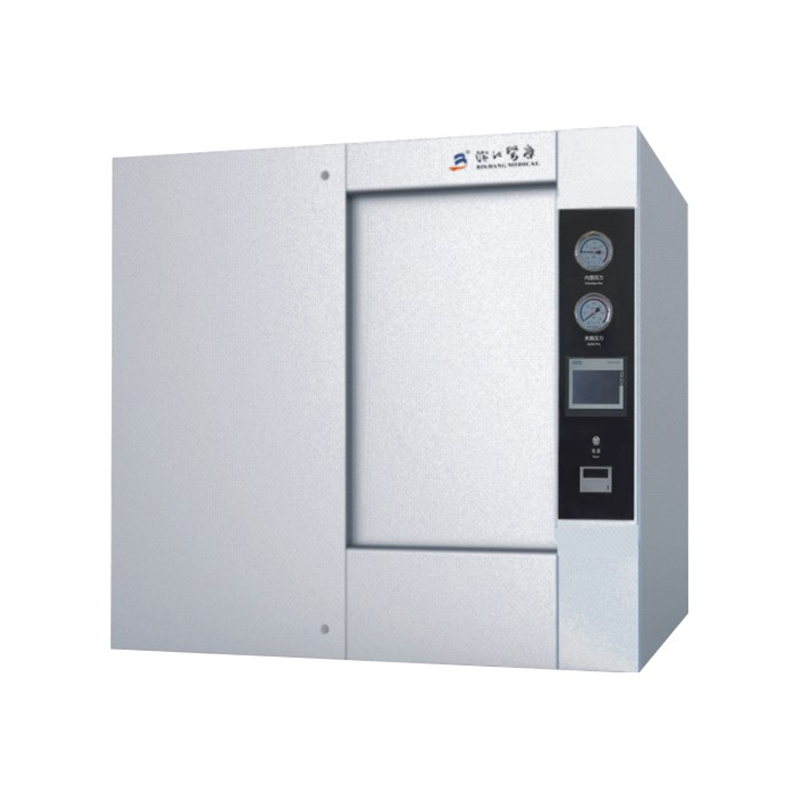

WG Series Sliding-Door Pulse Vacuum Sterilizing Cabinet

Item	Parameter
Inner chamber design pressure	-0.1~0.3MPa
Jacket design pressure	0.3MPa
Design temperature	150°C
Maximum working temperature	138°C
Maximum working pressure	0.25MPa
Vacuum leakage rate	≤0.13KPa/min
Ultimate vacuum	-96KPa
Open pressure for inner chamber's safety valve	0.28MPa
Open pressure for jacket's safety valve	0.28MPa
Precision of sterilization temperature control	0~2°C
Temperature uniformity	±1°C
Negative pressure pulsation vacuum amplitude and times	amplitude -80~0KPa times 1~99
Times of pulses across pressure	amplitude -80~80KPa times 1
Times of positive pressure pulses	1~3

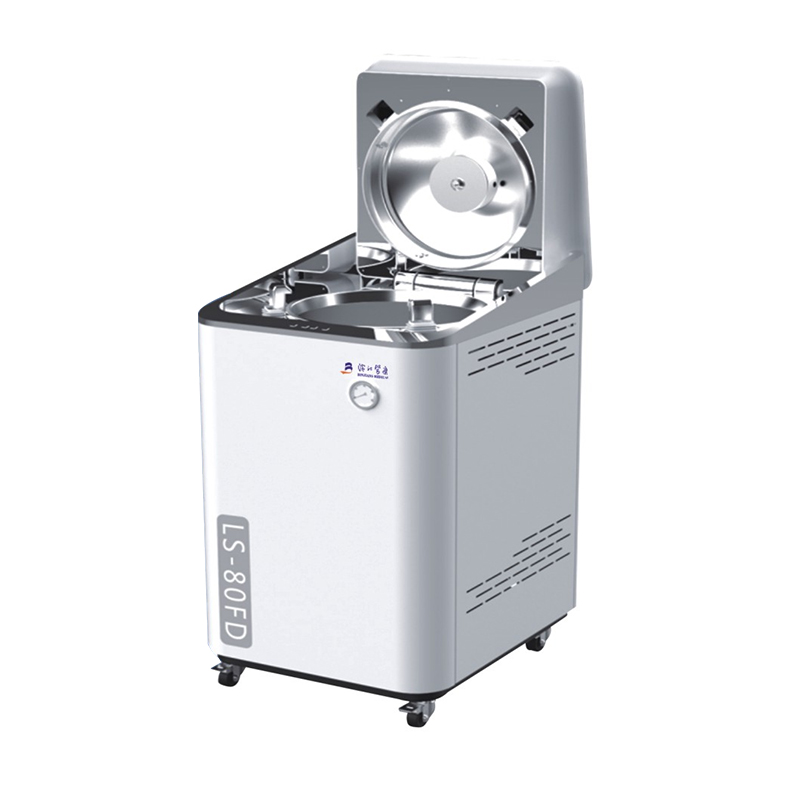

Automatic Flip-Top Vertical Steam Sterilizer

The automatic flip-top vertical steam sterilizer has an advanced design and is safe and reliable. It is mainly used in hospitals of all levels, health clinics, laboratories, and testing departments to sterilize various medical devices, utensils, cloths, surgical gowns, culture media, liquids, and other articles to prevent cross-infection.

Model	LS-60FD	LS-80FD	LS-100FD	LS-120FD
	60L	80L	100L	120L
Sterilizing chamber volume	396×490mm	396×650mm	480×560mm	480×660mm
Lifting height(mm)	1310	1590	1475	1565
Working pressure	0.22MPa	0.22MPa	0.22MPa	0.22MPa
Working temperature	134°C	134°C	134°C	134°C
Heat average	≤±1°C	≤±1°C	≤±1°C	≤±1°C
Time range	0~99min	0~99min	0~99min	0~99min
Temperature range	105~134°C	105~134°C	105~134°C	105~134°C
Consumption/power	(3+1.3)KWIAC220V 50Hz	(3+1.3)KWIAC220V 50Hz	(4.5+1.3)KWIAC220V 50Hz	(5.8+1.3)KWIAC220V 50Hz
Overall size(mm)	686×556×913	686×556×1035	840×600×970	840×600×1060
Transportation size(mm)	786×656×1013	786×656×1135	940×610×1000	940×610×1075
G.W/N.W	210kg / 180kg	230kg / 200kg	300kg / 270kg	325kg / 295kg

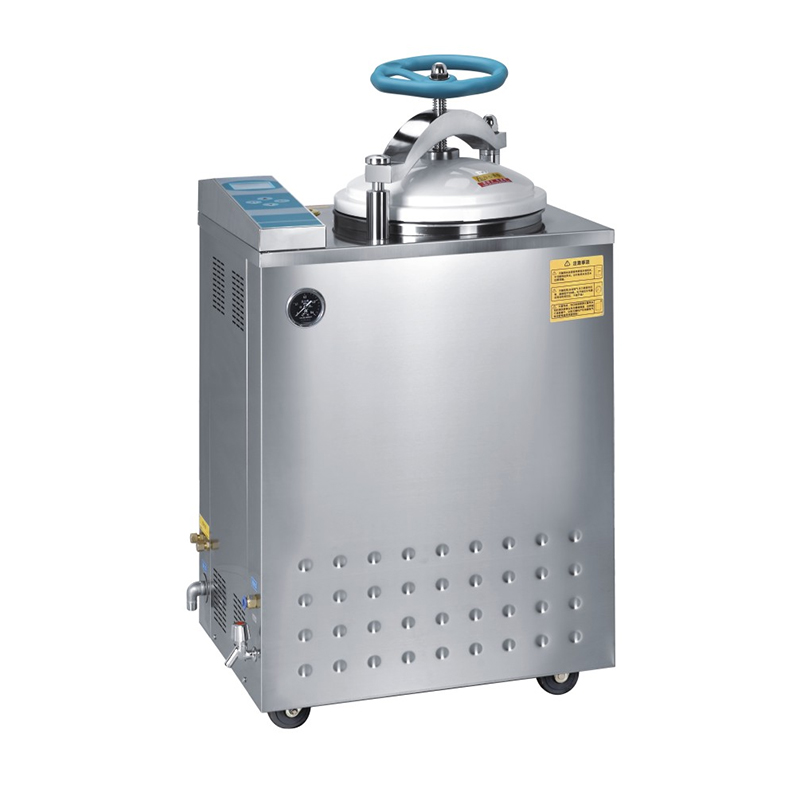

Vertical Pressure Steam Sterilizer

Specifically use for clinical laboratory

Model	L S-35HG	L S-50HG	LS-75HG	LS-75HG
	35L	50L	75L	75L
Sterilizing chamber volume	Φ318×450mm	Φ340×550mm	Φ400×600mm	Φ400×600mm
Lifting height(mm)	0.22MPa	0.22MPa	0.22MPa	0.22MPa
Working pressure	134°C	134°C	134°C	134°C
Working temperature	0.25MPa	0.25MPa	0.25MPa	0.25MPa
Heat average	≤±1°C	≤±1°C	≤±1°C	≤±1°C
Time range	0~99min or 0~99hour59min	0~99min or 0~99hour59min	0~99min or 0~99hour59min	0~99min or 0~99hour59min
Temperature range	0~134°C	0~134°C	0~134°C	0~134°C
Consumption/power	1×2.5KWIAC220V 50Hz	2×1.5KWIAC220V 50Hz	3×1.5KWIAC220V 50Hz	3×1.5KWIAC220V 50Hz
Overall size(mm)	710×490×1150	710×490×1150	750×510×1250	750×510×1250
Transportation size(mm)	740×550×1310	740×550×1310	780×600×1380	780×600×1380
G.W/N.W	120kg / 95kg	124kg / 100kg	146kg/ 120kg	146kg/ 120kg

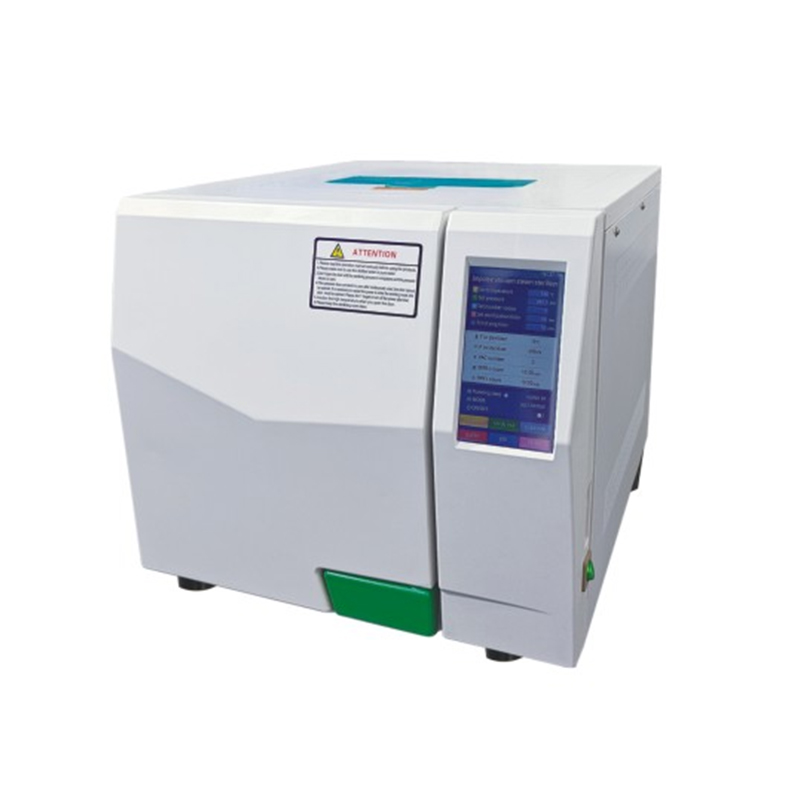

Table Top Pulse Vacuum Steam Sterilizer

The table-type sterilizers are safely auto-controlled and are designed for dental clinics, hospitals, school labs, scientific research institutions, and laboratories. And suitable for sterilizing surgical, dental, and eye instruments, glassware medicine, culture medium and biological dressing, food, etc.

Model	TM- 20DV	TM- 24DV
Sterilizing chamber volume	18L Φ250×360mm	24L Φ250×470mm
Rating working pressure	0.22MPa	0.22MPa
Rating working temperature	134°C	134°C
Temperature adjust range	105~134°C	105~134°C
Time range	0~99 min	0~99 min
Heat average	≤+1°C	≤+1°C
Power/Consumption	AC220V 50Hz / 2KW	AC220V 50Hz / 2KW
Overall size(mm)	480×680×455	480×680×455
Exterior package dimension (mm)	580×790×580	580×790×580
G.W/N.W	56kg/ 47kg	57kg/ 53kg

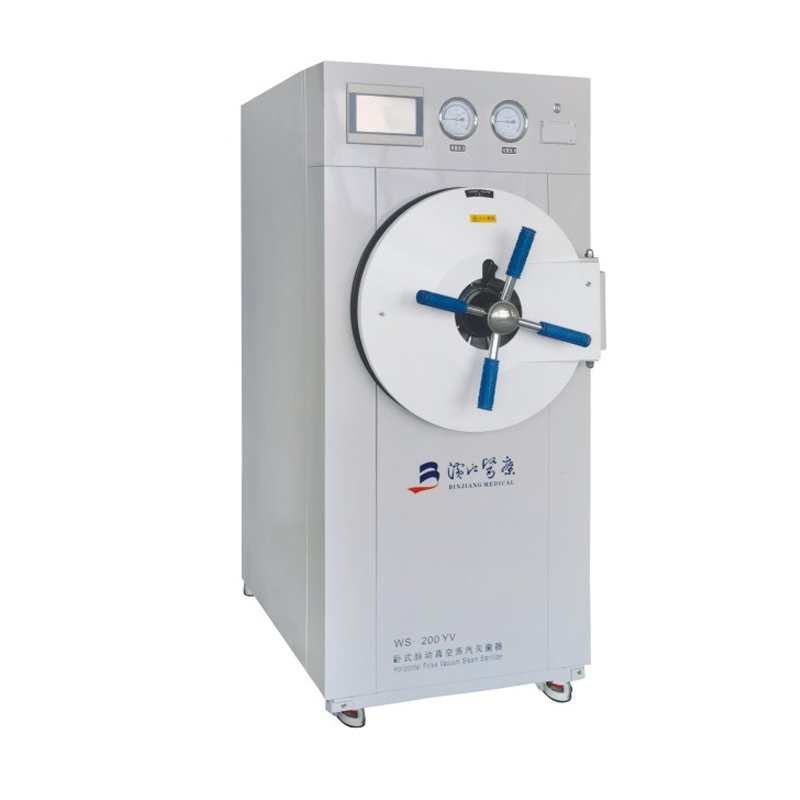

Horizontal Pulse Vacuum Steam Sterilizer

The sterilizer works on pressurized saturated steam for sterilization of items, eliminating the impact of cold air on the temperature by means of pulsating vacuum exhaust, and eventually drying the items by vacuum dehumidification realized in a jacket. It utilizes the physical property that pressurized saturated steam can release a large amount of latent heat when condensing, rendering the items to be sterilized under high temperature and humidity. The purpose of sterilization is attained after a period during which the bio-structure of all the germs in the items is destroyed. It is mainly used in hospitals, the chemical industry, food, scientific research, pharmaceutical, and other units for disinfection and sterilization of surgical instruments, dressings, medicines, culture medium, food, etc.

Model	WS-100YV	WS-150YV	WS-200YV	WS-300YV
	100L	150L	200L	300L
Sterilizing chamber volume	Φ440×670mm	Φ440×1000mm	Φ515×1000mm	Φ600×1080mm
Rating working pressure	0.22MPa	0.22MPa	0.22MPa	0.22MP
Rating working temperature	134°C	134°C	134°C	134°C
Temperature range	115~ 134°C	115~ 134°C	115~134C	115~134°C
Time for sterilization	0~99min	0~99min	0~99min	0~99min
Time for drying	0~99min	0~99min	0~99min	0~99min
Heat average	≤±2°C	≤±2°C	≤±2°C	≤±2°C
Vacuum limit	-0.08MPa	-0.08MPa	-0.08MPa	-0.08MPa
Consumption/power	10KW/AC380V 50Hz	10KW/AC380V 50Hz	10KW/AC380V 50Hz	13KW/AC380V 50Hz
Overall size(mm)	1400×660×1640	1400×660×1640	1400×750×1740	1520×850×1850
Transportation size(mm)	1560×820×1820	1560×820×1820	1560×910×1880	1680×1080×2100
G.W/N.W	430kg / 376kg	458kg / 404kg	505kg / 440kg	613kg / 528kg

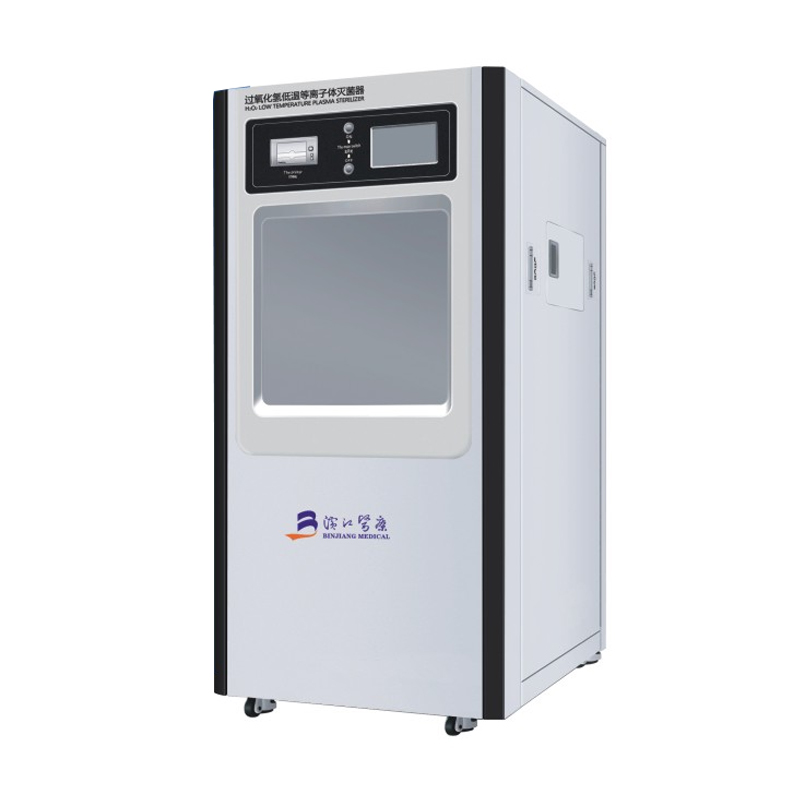

Low Temperature Plasma Sterilizer

1. Low temperature (terilizing temperature 50°C)
2. Low temperature
3. Fast, residue-free, pollution-free

Model	BJ-PS 200
Chamber shape	Rectangular
Door open mode	Double doors (optional for the single door)
Chamber size (W×H×D)(mm)	550×445×900
Chamber capacity(L)	220
Valid capacity(L)	200
Overall size ( W×H×D)(mm)	932×1775×1098
Built-in sterilization program	Standard procedure
Minimum installation space(mm)	1500×1300
Minimum repairing distance(mm)	1000
The minimum distance between the rear shell and the wall(mm)	150
Installation temperature(°C)	10~40
Power supply	380V/50Hz
Consumption(KW)	3.5
Weight(Kg)	400

Low Temperature Plasma Sterilizer

1. Low temperature (terilizing temperature 50°C)
2. Low temperature
3. Fast, residue-free, pollution-free

Model	BJ-PS 120
Chamber shape	Rectangular
Door open mode	Single door
Chamber size (W×H×D)(mm)	450×410×780
Chamber capacity(L)	144
Valid capacity(L)	120
Overall size ( W×H×D)(mm)	845×1700×990
Built-in sterilization program	Fast cycle, standard cycle, strengthen cycle
Minimum installation space(mm)	1500×1200
Minimum repairing distance(mm)	1000
The minimum distance between the rear shell and the wall(mm)	150
Installation temperature(°C)	10~40
Power supply	220V/380Hz
Consumption(KW)	3
Weight(Kg)	350

Low Temperature Plasma Sterilizer

1. Low temperature (terilizing temperature 50°C)
2. Low temperature
3. Fast, residue-free, pollution-free

Model	BJ-PS 80
Chamber shape	Rectangular
Door open mode	Single door
Chamber size (W×H×D)(mm)	400×360×680
Chamber capacity(L)	100
Valid capacity(L)	80
Overall size ( W×H×D)(mm)	746×1700×940
Built-in sterilization program	Fast cycle, standard cycle, strengthen cycle
Minimum installation space(mm)	1500×1200
Minimum repairing distance(mm)	1000
The minimum distance between the rear shell and the wall(mm)	150
Installation temperature(°C)	10~40
Power supply	220V/380Hz
Consumption(KW)	2.5
Weight(Kg)	300

Electric Steam Generator

1. Automatic control, safe and reliable
2. Fast-producing the steam, highly efficient and energy-saving
3. Spray-coated shell
